 Name：Mini Lathe CJ0618
Release time：2025-04-03 10:16:44click rate：
|
 |
Details

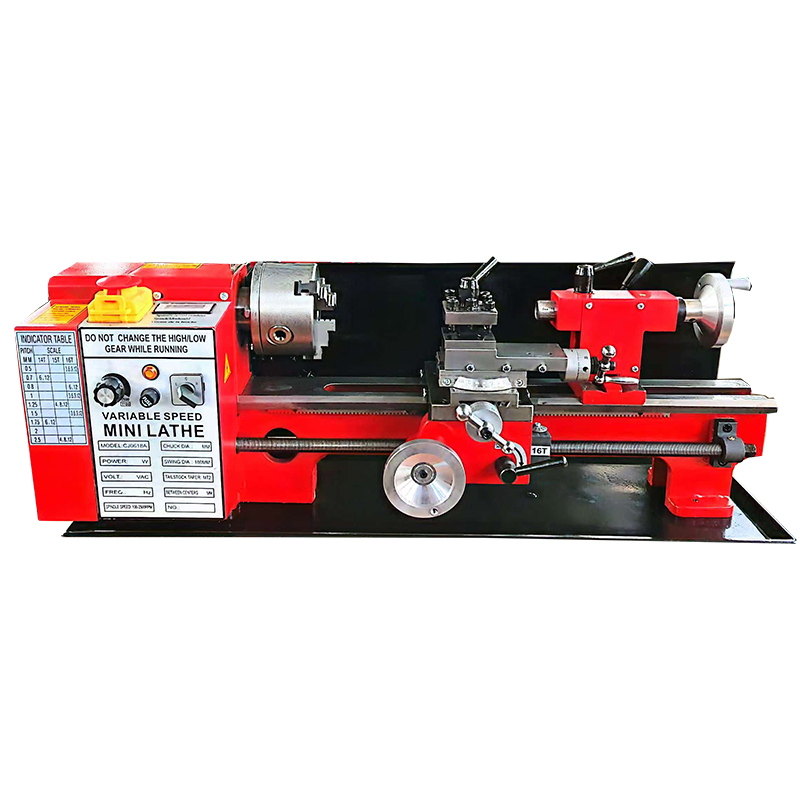

Mini variable speed lathe CJ0618
Feature :
1.Distance betwwen center 350mm
2. Three jaw chuck 100mm,spindle bore 32mm
3.Install speed display ,metal change gear .
Specification:
| Model | CJ0618 |
| Distance between centers | 350mm |
| Swing oved bed | 180mm |
| Chuck diameter | 100mm |
| Spindle bore | 32mm |
| Tool slide travel | 35mm |
| Taper of tailstock quill | MT2 |
| Range of metric threads | 0.5-2.5mm |
| Range of inchthreads | NO |
| Cross slide travel | 65mm |
| Spindle accuracy | 0.01mm |
| Spindle speed | 50-2500RPM |
| Voltage | 220V |
| Motor | 750W |
| Net weight | 45kgs |
| Gross weight | 50KGS |
| Packing size | 880x347x394mm |
