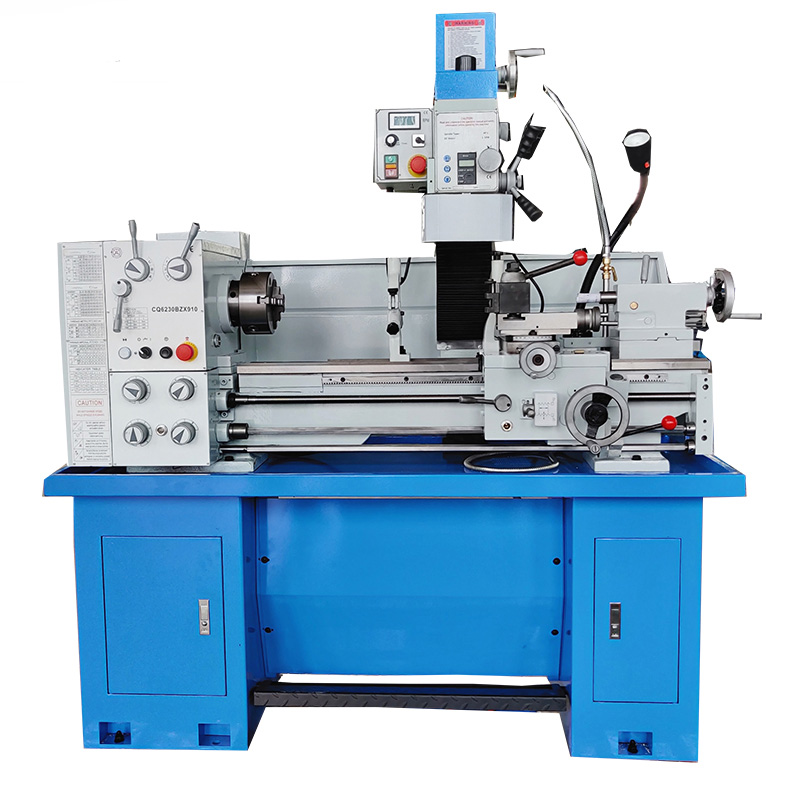

 Name：Combo Lathe CQ6230BZ
Release time：2018-08-31 19:13:52click rate：
|
 |
Details
Supersonic frequency hardened bed way.
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.
Various threads cutting function available.
| Specifications for CQ6232BZ | ||
|
Turning | Swing Over Bed | 300mm |
| Max. swing over cross slide | 180mm | |
| Max. swing over gap | 430mm | |
| Distance Between Centers | 910mm/1000mm | |
| Spindle Bore | 38mm | |
| Taper Of Spindle Bore | MT5 | |
| Spindle Speed | 65-1400RPM | |
| Range of longitudinal feeds | 0.079-1.291mm/rev | |
| Range of cross feeds | 0.017-0.276mm/rev | |
| Range of Metric Thread | 0.4-7mm | |
| Range of Inch Thread | 4-60 T.P.I | |
| Tailstock quill travel | 100mm | |
| Tailstock quill taper | MT3 | |
| Vol./Freq | As custoner's requirement | |
| Motor | 1500W | |
|
Drilling and Milling | Drilling Capacity | 25mm |
| Face Milling Capacity | 50mm | |
| End Milling Capacity | 25mm | |
| Max. distance from bench to spindle nose | 232mm | |
| Table Size | 340*120mm | |
| Spindle Speed | 100-1000 RPM | |
| Motor | 600W | |
| Head stock stroke | 230mm | |
|
| Net Weight | 670kgs |
|
| Gross Weight | 750kgs |
|
| Packing Size | 1940×850×1850mm |
