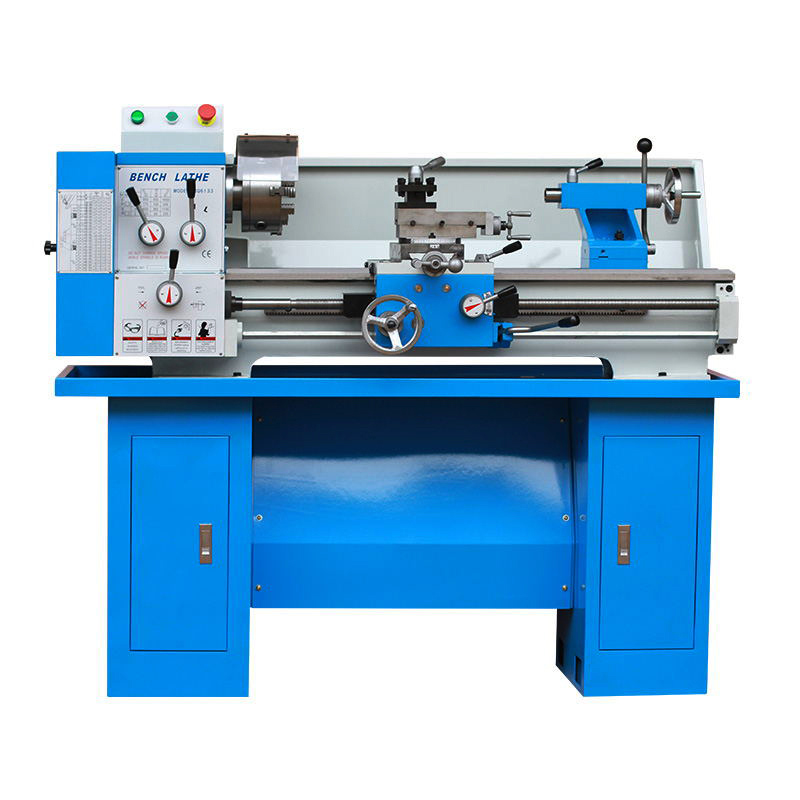

Small Bench Lathe CQ6133
Name:Small Bench Lathe CQ6133
Release time:2018-10-15 16:46:50click rate:
Details

Model

Item

CQ6133

Maximum workpiece turning diameter on the bed

mm

320

Maximum two tip distances

mm

750mm

Maximum workpiece turning diameter on the middle carriage

mm

210

Spindle through hole diameter

mm

38

Spindle boring

MT5#

Tool holder maximum horizontal sentence stroke

mm

170

Maximum longitudinal travel of the knife holder

mm

100

Number of processed metric threads

17

Number of threads in the inch

24

Processing metric thread pitch range

mm

0.5-4

Processing inch thread pitch range

1/n

9-40

The longitudinal feed of the spindle per revolution of the tool holder

mmr

0.100-1.39

The maximum movement of the tailstock sleeve

mm

70

Tailstock sleeve

MT3#

Spindle speed series

12

Spindle speed range

r/min

60-1600

Motor

KW

1.5

net weight

kg

300kg

Package dimensions (length x width x height)

mm

1550x760x700
