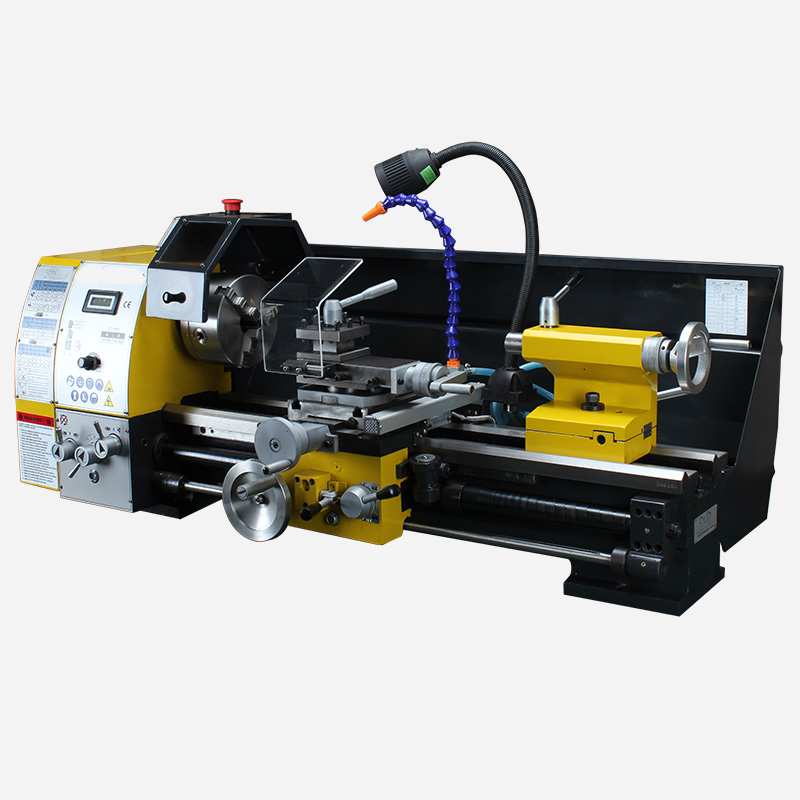

 Name：Small Bench Lathe BHC300VF
Release time：2021-07-29 17:00:11click rate：
|
 |
Details
This machine can turning ,drilling round bar work piece,process out
circle ,inner bore ,cutting ,threading , drill hole ,reaming ,popular with small
workshop ,development,DIY hobby ,school for training .
1.Use SKF taper roller bearing,more precision ,more durable use ,low noise .
2.Big power 1.5KW ,Frequency control ,AC brushless motor .
3.install Leadscrew cover protection ,tool post guard , three jaw chuck guard .
4.use two rod , X,Y axis auto feed ,the bed surface frequency hardening .
Model BHC300VF Max Swing over bed 300mm Width bed 180mm Distance between centers 700mm Spindle bore 38mm Taper of spindle bore MT5 Range of spindle speed 30-3000rpm Range of longitudinal feeds 0.07-0.40mm/r Range of inch threads 8-56TPI(21) Range of metric threads 0.2-3.5mm(18) Tape slide travel 60mm Cross slide travel 165mm Tailstock quill travel 80mm Taper of tailstock quill MT3 main power 1.5KW Net weight/gross weight 220/270kg Packing size 1400*700*680mm
