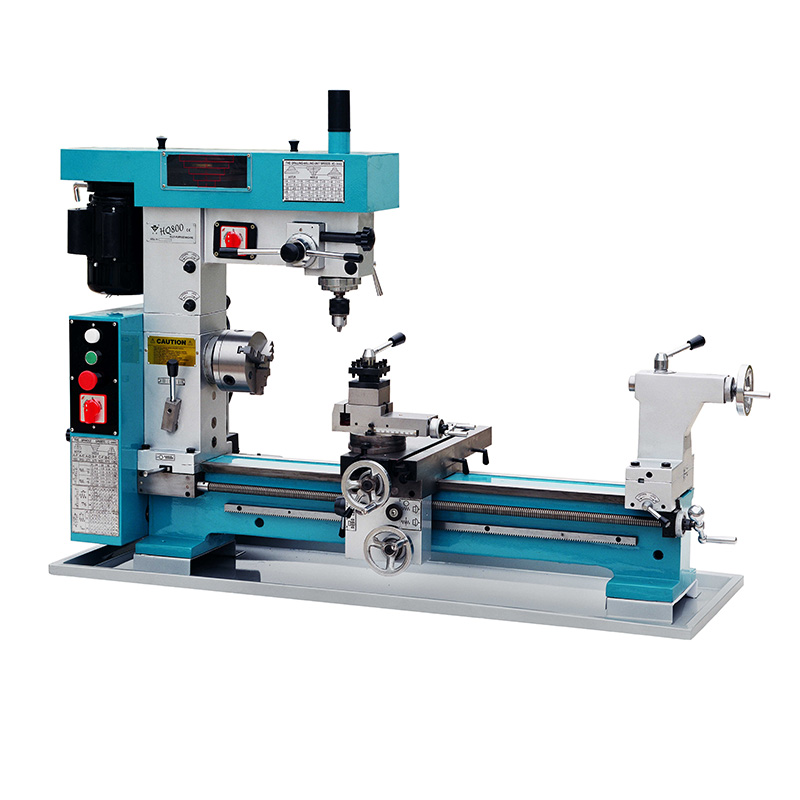

 Name：Combo Lathe HQ800
Release time：2021-07-29 16:40:10click rate：
|
 |
Details
● A kind of combination machines with turning, milling, drilling and threading.
● Metric or imperial thread cutting
● Suitable for processing metal, wood and other materials.
● Excellent advantage of various functions, small occupation
● Widely used in job-shops,car-shops technical school,factories
and family for machine parts repairing and making, education training
● Metric or imperial thread cutting
● Suitable for processing metal, wood and other materials.
● Excellent advantage of various functions, small occupation
● Widely used in job-shops,car-shops technical school,factories
and family for machine parts repairing and making, education training
| Swing Over Bed | 420mm |
| Distance Between Centers | 800mm |
| Max. Longitudinal Travel | 700mm |
| Max. Cross Travel | 195mm/200mm |
| Taper Of Spindle | MT4 |
| Spindle Hole | 28mm |
| Step Of Spindle Speed | 7 |
| Range Of Spindle Speed | 160-1360rpm |
| Barrel Travel | 70mm |
| Barrel Taper | MT3 |
| Metric Thread Range | 0.2-6mm |
| nch Thread Range | 4-120 T.P.I |
| Longitudinal Range Of Automatic Feeding: | 0.05-0.35mm (0.002 "-0.014 ") |
| cross range of automatic feeding | 0.05-0.35mm (0.002 "-0.014 ") |
| Max Driiling Capacity | ∅22mm |
| Worktable Size(L×W) | 475×160mm |
| Max. End Milling Capacity | ∅28mm |
| Max. Face Mill Capacity | ∅80mm |
| Distance Between Spindle Center And Column | 285mm |
| Distance Between Spindle And Worktable | 306mm |
| Headstock Travel Of Up And Down | 110mm |
| Spindle Taper | MT3 |
| Step Of Spindle Speed | 16 |
| Range Of Spindle Speed | 120-3000 rpm |
| Swivel Angel Of Headstock | ±360º |
| Motor Power | 750W |
| Packing Size | 1430×580×1100mm |
| N.W/G.W | 275kgs/325kgs |
