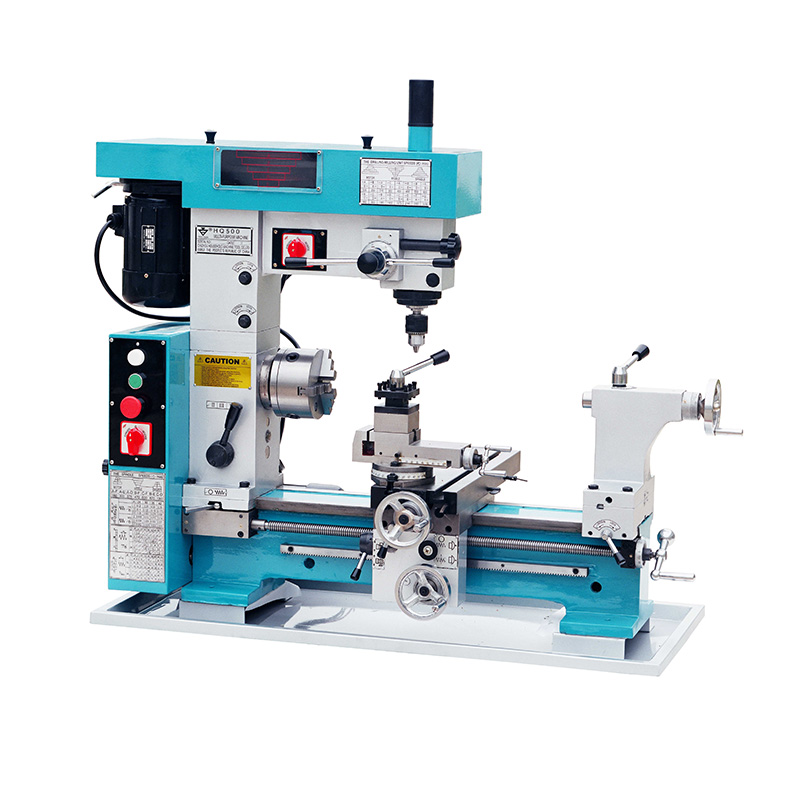

 Name：Combo Lathe HQ500
Release time：2021-07-29 16:51:55click rate：
|
 |
Details
A kind of combination machines with turning, milling, drilling and threading.
Metric or imperial thread cutting
Suitable for processing metal, wood and other materials
Excellent advantage of various functions, small occupation
Widely used in job-shops, car shops technical school, factories and family
for machine parts repairing and making, education training, household utensils' making.
Metric or imperial thread cutting
Suitable for processing metal, wood and other materials
Excellent advantage of various functions, small occupation
Widely used in job-shops, car shops technical school, factories and family
for machine parts repairing and making, education training, household utensils' making.
| Specifications | HQ500 | HQ800 | |
| Turning | Swing over bed | φ 420mm | |
| Distance between centers | 500mm | 800mm | |
| Max. longitudinal travel | 440mm | 740mm | |
| Max. cross travel | 200mm | ||
| Taper of spindle | M. T. 4 | ||
| Spindle hole | φ 28mm | ||
| Step of spindle speed | 7 steps | ||
| Range of spindle speed | 160-1360RPM | ||
| Barrel travel | 70mm | ||
| Taper of center | M. T. 3 | ||
| Metric thread range | 0.2-6mm | ||
| Inch thread range | 4-120T. P. I | ||
| Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014" | ||
| Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014" | ||
| Drilling & Milling | Max. drilling capacity | φ 22mm | |
| Worktable size (L*W) | 475× 160mm² | ||
| Max. end mill | φ 28mm | ||
| Max. face mill | φ 80mm | ||
| Distance between spindle center and column | 285mm | ||
| Distance between spindle and worktable | 306mm | ||
| Headstock travel of up and down | 110mm | ||
| Spindle taper | M. T. 3 | ||
| Step of spindle speed | 16 | ||
| Range of spindle speed | 120-3000r. p. m | ||
| Swivel degree of headstock | ± 360° | ||
| Motor | Motor power | 0.55Kw | |
| Shipping data | Packing size | 1130×580×1100mm(HQ800:1430×580×1100mm) | |
| N. weight/G. weight | 245kg/280kg(HQ800:275kg/325kg) | ||
