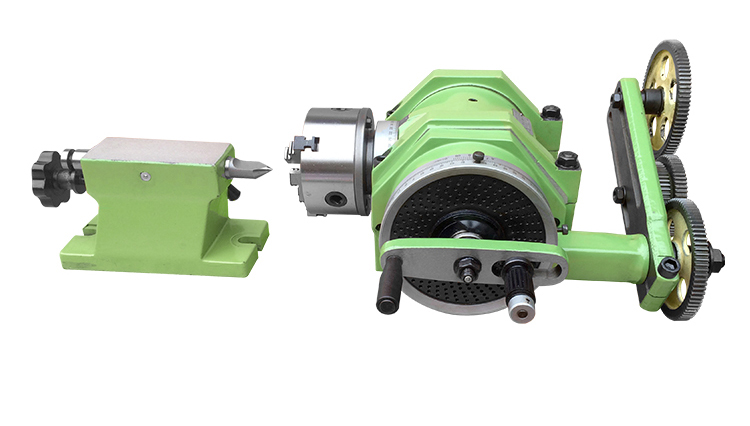

 Name：Universal Divided Head F11
Release time：2021-08-09 16:29:53click rate：
|
 |
Details
The universal dividing head,Type F11100A,F11160A is one of the most important
attachmenet for milling machine.With the help of this dividing head the workpiece
held between centers,or on a chuck can be rotate to any angle as desired and the
periphery of a workpiece can be divided into any divisions of equal parts.By means
of all kinds of cutters,the dividing head can also help milling machine to perform the
milling operation for flute spir gear,spiral gear,spiral flute,Archimedean cam,helical flute
The dividing head is equipped with a face plate that can be mounted onto the spindle nose.
The workpiece can be mounted on the face plate,thus,cutting can be carried out on 4-sides
of a workpiece.F11125C F11160C is designed for the consumers special needed,the
shafting is improved to support heavy load.The universal dividing head,type F11100AL,
F11125A,f11160A is the same as of the structures and the operation handle is settled on the left.
attachmenet for milling machine.With the help of this dividing head the workpiece
held between centers,or on a chuck can be rotate to any angle as desired and the
periphery of a workpiece can be divided into any divisions of equal parts.By means
of all kinds of cutters,the dividing head can also help milling machine to perform the
milling operation for flute spir gear,spiral gear,spiral flute,Archimedean cam,helical flute
The dividing head is equipped with a face plate that can be mounted onto the spindle nose.
The workpiece can be mounted on the face plate,thus,cutting can be carried out on 4-sides
of a workpiece.F11125C F11160C is designed for the consumers special needed,the
shafting is improved to support heavy load.The universal dividing head,type F11100AL,
F11125A,f11160A is the same as of the structures and the operation handle is settled on the left.
| tem | F11100A | F11125A | F11160A | F11200A | |
| Center hight mm | 100 | 125 | 160 | 200 | |
| Swivel angle of spindle from it's horizontal posirion(upward) | ≤95° | ||||
| Horizontal position(downward) | ≤5° | ||||
| Rotating angle of spindle for one complete revolution | 9°(540grad.,1' each) | ||||
| Min reading of vernier | 10" | ||||
| Worm gear ratio | 1:40 | ||||
| Taper of spindle bore | MT3 | MT4 | |||
| Width of locating key.mm | 14 | 18 | |||
| Diameter of short taper of spindlenose for mounting flange mm | Φ41.275 | Φ53.975 | Φ53.975 | Φ53.975 | |
| Hole number on index plate | 1st plate | 24,25,28,30,34,37,38,39,41,42,43 | |||
| 2nd plate | 46,47,49,51,53,54,57,58,59,62,66 | ||||
| Change Gear | Module | 1.5 | 2 | ||
| Teht Numbers | 2.5,30,35,40,50,55,60,70,80,90,100 | ||||
| Individual indexing error of the spindle for one | ±45" | ||||
| Cumulate error at any 1/4 periphery of spindle | ±1" | ||||
| Max bearing Kg | 100 | 130 | 130 | 130 | |
| Net weight Kg | 67 | 101.5 | 113 | 130 | |
| Gross weight Kg | 79 | 111.5 | 123 | 140 | |
| Overall dimensions mm | 616×465×265 | 635×530×530 | 710×535×342 | 710×535×342 | |
