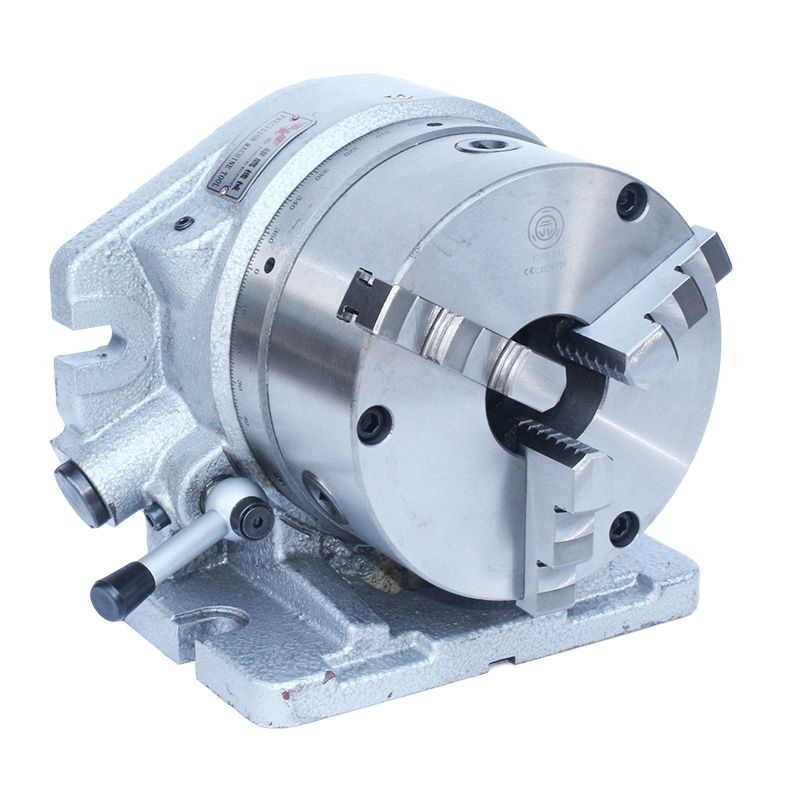

Indexing Head CC
Name:Indexing Head CC
Release time:2021-08-09 16:37:47click rate:
Details

Solid Meehanite casting.specially designed for milling, drilling and boring.
Hardened and ground 24 position measter plate.
Precision ground steel spindle.
Heavy duty shoe type spindle brake ensuring maximum righdity formilling cuts.
Chrome plated graduated ring with five minute vernier reading.
The center through hole isbig to be suitable for the large and long workpiece.
Used the key guide block.the center can be corrected both quickly and accurately.
Horizontal and vertical mounting positions.
Standard Accessories
3-jaw chuck
Six masking plates(2,3,4,6,8 and 12 position)

Application:

Suitable for milling machine,special machinery for simple and fast segmentation

Cheap Modern High Precision Quick Change Universal CC-8 Dividing Head For Milling Drilling And Boring

Model A B C D a b h
CC-6

255

255 152 160 190 115 130

10.04

8.86 5.98 6.30 7.48 4.53 5.12
CC-8 320 272 174 200 230 154 154
12.6 10.71 6.85 7.87 9.06 6.06 6.06
